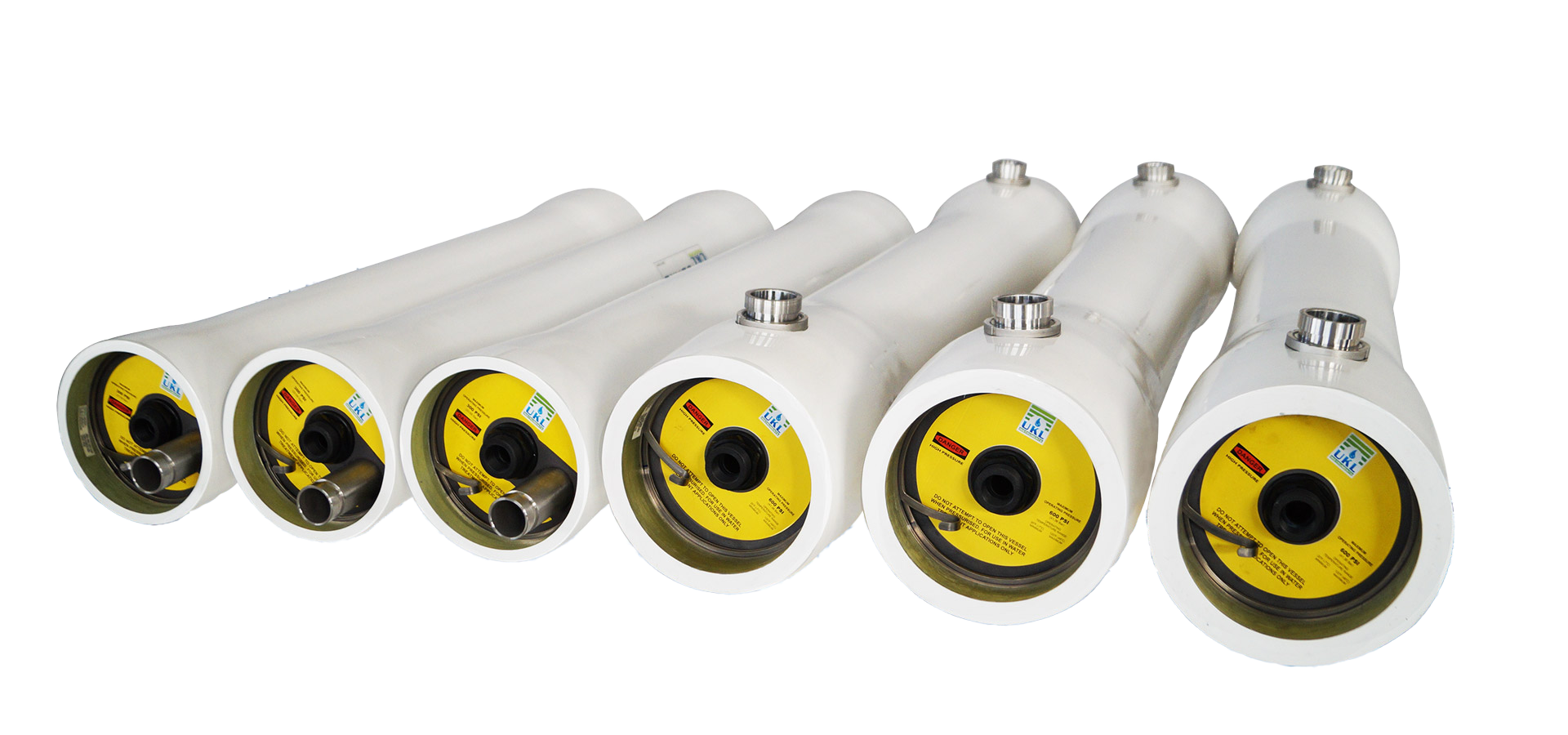

The UKL 80EP is an 8 end-entry membrane housing designed for commercial, municipal, and industrial RO applications. Available in operating pressure ratings from 300 to 1200 PSI, the vessel is constructed from epoxy / glass composite for reliable long-term and continuous service. UKL 80EP housings are compatible with all standard 8 spiral-wound RO membrane elements, making them suitable for brackish and seawater RO systems.
Key Features
Mirror-Finished Inner Diameter (ID)
Precision-finished internal surface minimizes friction and prevents membrane damage during element insertion and removal.
Quick-Lock Head Retention Mechanism
Ergonomically designed quick-lock mechanism enables rapid, safe access to membrane elements without special tools, reducing service downtime.
Integrally Formed Locking Groove
Monolithic locking groove construction enhances end-margin strength and long-term structural integrity.
Seawater-Grade Port Construction
Corrosion-resistant feed and concentrate ports ensure dependable performance in high-salinity and seawater environments.
High-Gloss Polyurethane External Coating
UV-resistant industrial-grade coating protects against environmental exposure and surface degradation.
Captured Head Seal Configuration
Integrated seal design prevents roll-over during installation, ensuring consistent sealing integrity and leak prevention.
Application-Specific Compatibility
Suitable for brackish, high-brackish, and seawater RO systems according to specified pressure ratings.
Compliance & Certification Options
Available in ASME-certified models to meet international regulatory and quality standards.
Technical Specifications
| Model\Spec | Design Pressure |
Min. Temperature |
Max. Temperature |
No. of Elements |
|---|---|---|---|---|
| 80EP300 | 300 psi | -7°C | 65°C | 1 to 7 |
| 80EP450 | 450 psi | -7°C | 65°C | 1 to 7 |
| 80EP600 | 600 psi | -7°C | 65°C | 1 to 7 |
| 80EP1000 | 1000 psi | -7°C | 65°C | 1 to 7 |
| 80EP1200 | 1200 psi | -7°C | 65°C | 1 to 7 |
